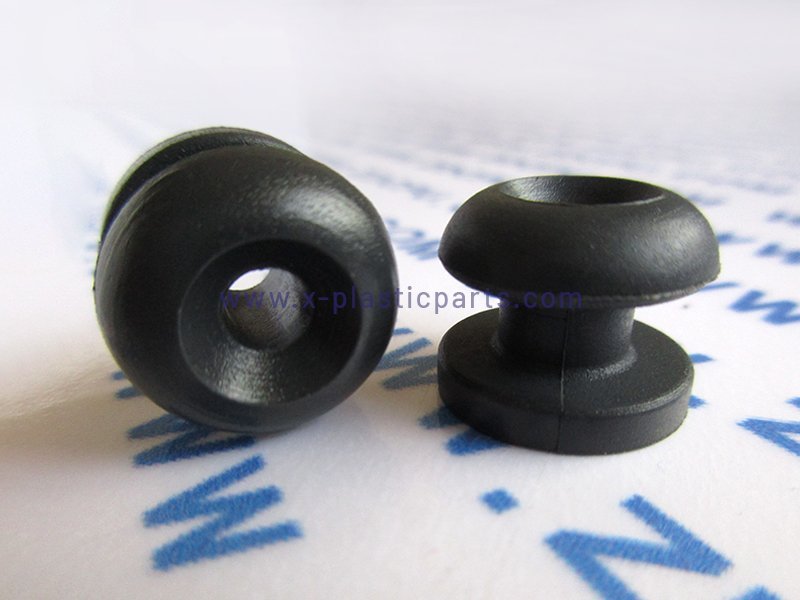

Thick Rubber Grommet
Custom Thick Rubber Grommets for Heavy-Panel Applications
A rubber grommet holds in place through its groove — the channel that locks against both faces of the panel. When groove width does not match panel thickness, the flange lifts, the body rocks in the hole, and the seal fails. At 5mm, 8mm, 10mm panel thickness and above, this mismatch is the rule with standard grommets, not the exception.
Flexiparts manufacture thick rubber grommets to your panel specification. Groove width is matched to your exact wall thickness, barrel depth to your panel face-to-face dimension, and bore to your cable or hose OD. Every order is built from your drawing or sample. If a standard grommet cannot seat in your panel correctly, that is precisely the situation we manufacture for.
What We Need to Custom Thick Grommets Quote
Panel thickness, hole diameter, and bore size give us the geometry. To give you an accurate quote we also need material requirement, target quantity, and any compliance or tolerance specifications. If you are not sure on material, tell us the operating environment — fluid contact, temperature range, UV exposure — and we will recommend.
A drawing covers all of this in one document. A sample works too. If you only have partial specs, send what you have and we will ask the rest.
Where Thick Grommets Are Specified
- Industrial Machinery Frames — steel plate 6–15mm; standard grommets have no groove grip at this thickness; we mold to your exact wall dimension
- Marine Bulkheads — fiberglass or steel 8–20mm; groove matched to panel, EPDM compound for saltwater and UV; off-the-shelf options in this thickness range do not exist
- Heavy-Duty Electrical Enclosures — cast aluminum or thick-wall plastic housings; cable entry grommets molded to housing wall thickness for positive retention
- Automotive Chassis and Subframes — wiring harness routing through structural members thicker than standard body sheet metal; custom groove width required
- Construction and Agricultural Equipment — hydraulic hose pass-throughs through heavy plate; bore sized to hose OD, compound specified for abrasion and fluid resistance
- Generator and Compressor Housings — vibration isolation at cable entry on thick cast walls; durometer specified for your vibration frequency and load
FAQ About Thick Grommets
1. Do you stock thick grommets in standard sizes?
No. Every thick grommet we produce is molded to order. There is no catalog to choose from — you provide the panel thickness and hole diameter, we build the grommet to match and send T1 samples before production runs.
2. What is the thickest panel you can accommodate?
Groove width is a molded dimension with no fixed upper limit. We have produced grommets for panels up to 20mm and beyond. Feasibility depends on wall thickness of the grommet body itself — we confirm this at the quoting stage.
3. Can I force a standard grommet to fit a thick panel?
No. Groove width is set by the mold and cannot be stretched. Forcing a narrow-groove grommet into a thick panel lifts the flange and breaks the seal. The only correct solution is a grommet molded to your panel thickness — which is what we do.
4. How do I choose the right material?
Tell us your operating environment: fluid contact, temperature range, UV or weathering exposure, vibration load. We specify the compound. NBR for oil and fuel contact, EPDM for outdoor and weathering, FKM for extreme chemical or heat environments.
How To Work with Us
The key to great custom parts is collaboration. As a custom molding manufacturer, our engineers will stay connected with you throughout the process, and deliver products that meet your expectations.
- Send us your 2D/3D files or product concept, for an accurate quote, please send us materials, order quantity, and surface requirements.
- We review your design and send you a clear cost within 24 hours.
- Our tooling team builds the mold to your specifications, then send you T1 samples for confirmation.
- Once the sample is approved, we run full production under strict quality control
- Your finished parts are packaged securely and shipped to your location on time.
