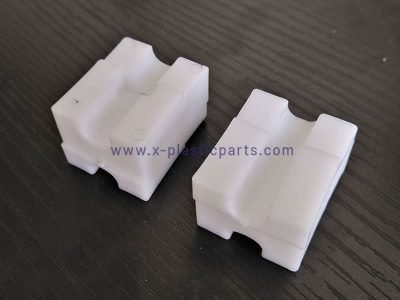

Custom Plastic V-Block Manufacturing
Flexiparts manufactures custom plastic V-blocks based on customer drawings, 3D CAD files, or physical samples.
Each V-block can be customized for the required dimensions, V-groove angle, mounting method, material, and functional requirements. Parts are made to order rather than supplied as standard off-the-shelf products.
Custom plastic V-blocks can be produced by CNC machining or injection molding, depending on the part design, tolerance requirements, and production quantity.
Custom V-Block Designs & Features
Plastic V-blocks can be manufactured with different V-groove profiles and mounting features to fit specific equipment or fixtures.
- V-Groove Profiles: 90°, 120°, asymmetric, radius, or other custom groove designs
- Custom Dimensions: Length, width, height, and groove depth
- Mounting Features: Through holes, counterbores, threaded inserts, slots, and mounting pockets
- Machined Features: Relief grooves, steps, cutouts, chamfers, and other custom geometry
- Surface Requirements: Surface finish based on the supported component and contact requirements
- Tolerances: Critical dimensions and geometric tolerances evaluated according to the part design and manufacturing process
Material Options for Custom Plastic V-Blocks
Material selection depends on load, friction, wear, dimensional stability, operating conditions, and the surface of the supported component.
- POM (Acetal): Suitable for precision components requiring good dimensional stability, strength, and low friction.
- Nylon (PA66): Suitable for applications requiring toughness, wear resistance, and mechanical strength.
- UHMW-PE: Suitable for low-friction and wear applications, especially where impact resistance is also required.
- PTFE: Suitable for applications requiring very low friction, chemical resistance, or a wide operating temperature range.
- PEEK: Suitable for demanding applications involving higher temperatures or higher mechanical requirements.
Other engineering plastics can also be evaluated based on your application requirements.
Plastic V-Block Applications Applications
Custom plastic V-blocks are commonly used to support, locate, guide, or position cylindrical and other shaped components. Typical applications include:
- Automation and assembly equipment
- Inspection and measurement fixtures
- Conveyor and material handling systems
- Machining and processing equipment
- Custom jigs and fixtures
How To Work with Us
The key to great custom parts is collaboration. As a custom molding manufacturer, our engineers will stay connected with you throughout the process, and deliver products that meet your expectations.
- Send us your 2D/3D files or product concept, for an accurate quote, please send us materials, order quantity, and surface requirements.
- We review your design and send you a clear cost within 24 hours.
- Our tooling team builds the mold to your specifications, then send you T1 samples for confirmation.
- Once the sample is approved, we run full production under strict quality control
- Your finished parts are packaged securely and shipped to your location on time.
