Grommets are small but essential components, different types of grommets play a critical role in protecting cables, reinforcing holes, and enhancing the functionality of products across numerous industries. From automotive wiring to medical devices, these versatile rings ensure durability, safety, and performance. With a wide variety of types of grommets available, selecting the right one for a specific application can be daunting. This article delves into the different types of grommets, focusing on rubber grommet types, their materials, applications, and how to choose a reliable manufacturer.
What Are Rubber Grommets?
Grommets are ring-shaped or custom-designed components typically used to protect cables, seal holes, reduce vibration, or insulate surfaces. They prevent abrasion, block dust and moisture, dampen mechanical vibrations, and even enhance the aesthetic appeal of products. Found in industries like automotive, electronics, medical, industrial, and furniture, grommets are indispensable for ensuring safety and longevity.

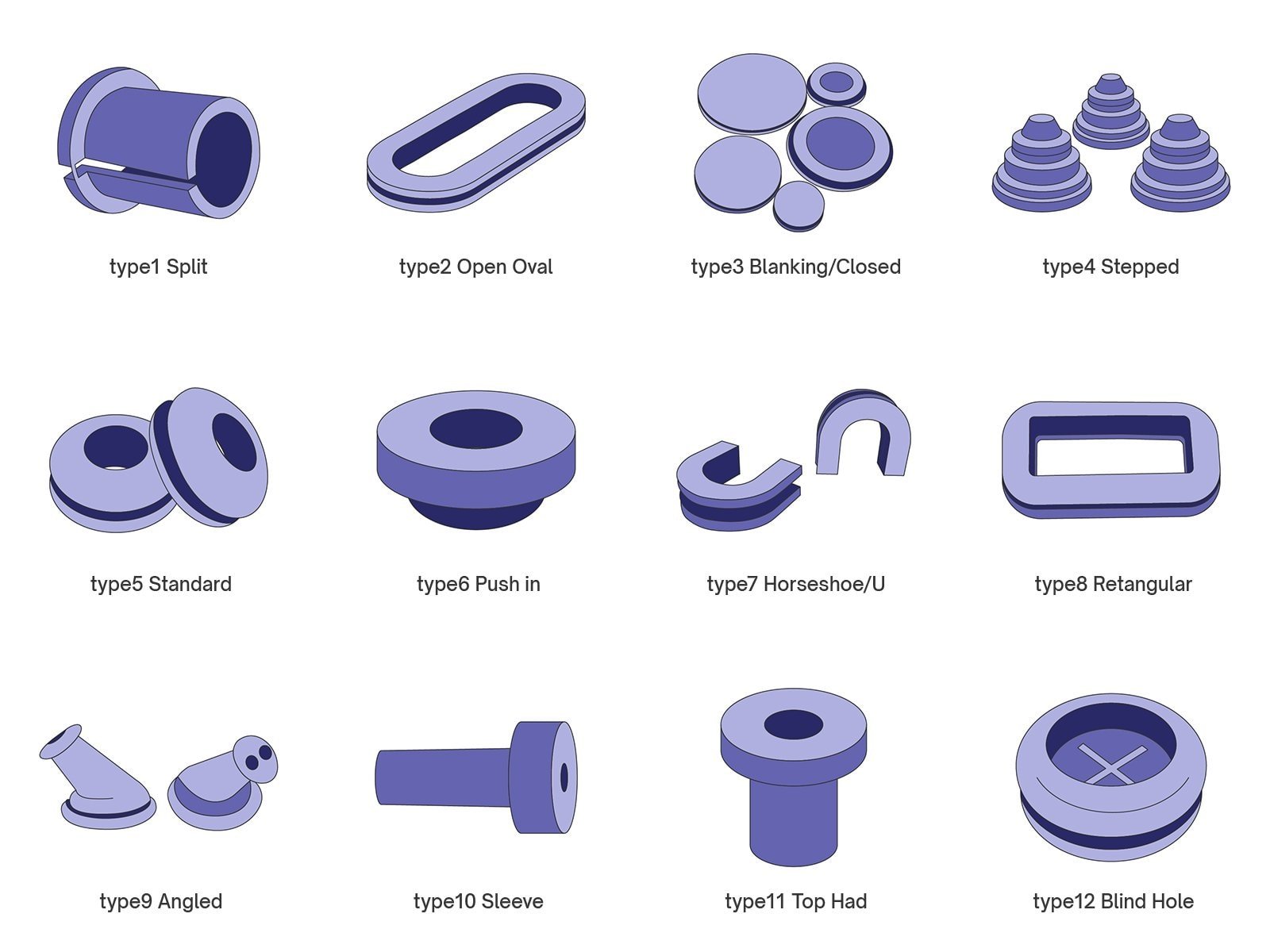

Types of Grommets
The range of grommet types is vast, but rubber grommet types dominate due to their flexibility, durability, and versatility. Below, we explore ten different types of grommets, all rubber-based, highlighting their features, materials, and applications to illustrate their specialized roles.

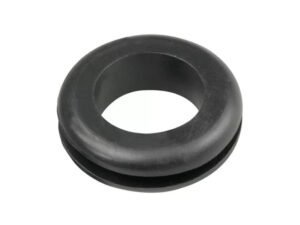

Open Rubber Grommets
Open rubber grommets feature a slotted design that allows cables or wires to pass through easily, making them ideal for dynamic cable management. Their flexibility ensures quick installation without disconnecting cables. Typically made from silicone for high-temperature resistance or neoprene for durability, these grommets are widely used in electronics for organizing computer wiring, in automotive applications for protecting harnesses, and in office furniture for tidy cable routing. Their adaptability makes them a staple among types of grommets for versatile setups.
Closed Rubber Grommets (Blind Rubber Grommets)
Closed rubber grommets, also known as blind grommets, are sealed to block dust, water, or air, making them perfect for closing unused holes or protecting enclosed systems. Crafted from neoprene for weather resistance or silicone for superior sealing, they may also use FKM for chemical resistance in harsh environments. These rubber grommet types are common in electrical enclosures, automotive panels, and waterproof equipment, ensuring robust protection against environmental factors.

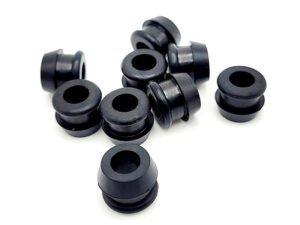

Push In Grommets
Push in grommets are designed for tool-free, snap-in installation, offering a secure fit in pre-drilled holes. Made from natural rubber for cost-effectiveness or silicone for resilience, they provide quick and reliable solutions for cable management. Their ease of use makes them popular in consumer electronics, server racks, and industrial control panels, where speed and efficiency are priorities. Among different types of rubber grommets, push in designs stand out for their practicality.

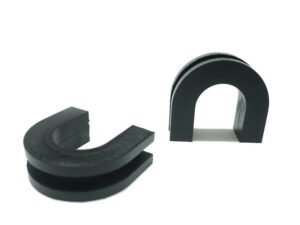

Horseshoe Grommets
Horseshoe grommets feature a U-shaped or slotted design, allowing cables to be inserted or removed without disconnection. Constructed from neoprene for durability or silicone for high-temperature environments, they are ideal for temporary or adjustable setups. Applications include desks for managing computer cables, automotive dashboards for wiring flexibility, and industrial systems requiring frequent cable adjustments. Their unique shape distinguishes them among grommet types.
Medical Plunger Grommets
Medical plunger grommets are engineered for precision and biocompatibility, ensuring safe use in medical devices. Made from silicone for sterilization compatibility or FKM for chemical resistance, they provide reliable sealing and insulation. These types of grommets are critical in syringe systems, diagnostic equipment, and surgical tools, where hygiene and performance are paramount. Their specialized design caters to the stringent demands of the medical industry.

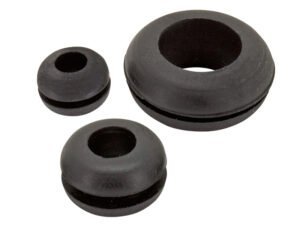

Standard Rubber Grommet
Standard rubber grommets are versatile, round components designed for general-purpose use, balancing cost and performance. Typically made from natural rubber or neoprene, they offer durability and flexibility for a range of applications. Found in household appliances, automotive interiors, and general cable protection, these rubber grommet types are a go-to choice for straightforward, cost-effective solutions among different types of grommets.

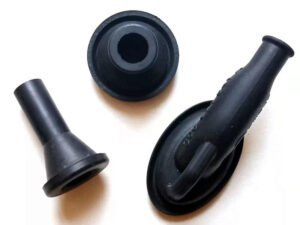

Custom Rubber Grommet
Custom rubber grommets are tailored to specific dimensions, shapes, or performance requirements, offering unmatched flexibility for unique projects. Materials like silicone, neoprene, or FKM are selected based on environmental or functional needs. These grommets are used in specialized machinery, aerospace components, and bespoke industrial setups, where standard designs fall short. The ability to customize makes them a critical category among types of grommets.

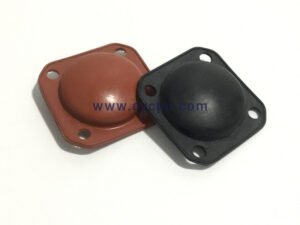

Diaphragm Rubber Grommet
Diaphragm rubber grommets feature a thin, flexible membrane that allows cables or tools to pass through while maintaining a seal. Made from silicone for flexibility or FKM for chemical resistance, they are ideal for applications requiring sealed access points, such as pumps, valves, and instrumentation. Their unique sealing capability sets them apart among different types of rubber grommets for precision applications.
Edge Rubber Grommet
Edge rubber grommets are designed to protect the edges of panels or holes, preventing wear, damage, or injury. Constructed from neoprene for toughness or silicone for high-temperature resistance, they are used in metal panels, furniture edges, and industrial enclosures. These grommet types enhance safety and durability, making them essential for applications where edge protection is a priority.
Stepped Rubber Grommet
Stepped rubber grommets feature a multi-tiered design to accommodate varying hole sizes or cable diameters, ensuring a secure fit. Made from natural rubber or silicone for adaptability, they are used in multi-cable setups, automotive wiring harnesses, and HVAC systems. Their versatility makes them a valuable addition to the range of types of grommets for complex configurations.
Typical Applications of Rubber Grommets
Rubber grommets serve as versatile components that protect cables, seal openings, and reduce vibration in various scenarios. The different types of rubber grommets are used to manage wiring through holes in equipment, ensuring cables remain undamaged and securely positioned. They seal unused ports to prevent environmental ingress, maintaining the integrity of sensitive systems. Additionally, they line panel edges to eliminate sharp surfaces and dampen mechanical vibrations for enhanced durability. These rubber grommet types find use in settings requiring cable organization, environmental protection, or structural reinforcement, making them essential across a range of technical applications.
Common Materials Used in Grommets
The performance of rubber grommets materials is critical to their effectiveness.
- Natural rubber is cost-effective, flexible, and durable, making it suitable for standard grommets in general applications, though it’s less resistant to extreme conditions.
- Neoprene offers excellent resistance to oil, weather, and UV, ideal for outdoor and automotive uses like horseshoe or edge grommets.
- Silicone provides high-temperature resistance, flexibility, and biocompatibility, making it the material of choice for medical plunger and diaphragm grommets.
- Fluorocarbon rubber (FKM/Viton) excels in harsh chemical and high-heat environments, perfect for closed or custom grommets in industrial settings.
How to Choose the Right Rubber Grommet Manufacturer?
Choosing a manufacturer for grommets is as crucial as selecting the grommet itself. There are some considerations.
- The first, evaluate their manufacturing processes: injection molding and compression molding are both processes for grommets manufacturing. Injection molding is ideal for high-volume, complex designs like stepped or medical plunger grommets, offering precision and consistency but requiring significant tooling investment. Compression molding suits lower volumes or custom rubber grommets, providing cost-effectiveness for thicker, less intricate parts, though it may involve longer lead times.
- The sencond, ensure they implement rigorous quality control, testing for dimensional accuracy and material integrity, and comply with standards like FDA for medical applications.
- The last, scalability, customization capabilities, and support services—like design consultation and prototyping—are also key. A reliable manufacturer maximizes the performance of grommet types through advanced processes and expertise.
Flexiparts is a experienced on-demand manufacturer offer professional injection molding and and compression molding services. From open and closed rubber grommets to specialized custom designs, we offer tailored solutions for various types of grommets. Welcome to contact us.
