Rubber Hole Grommet
Special Rubber Hole Grommets for Wire Protection

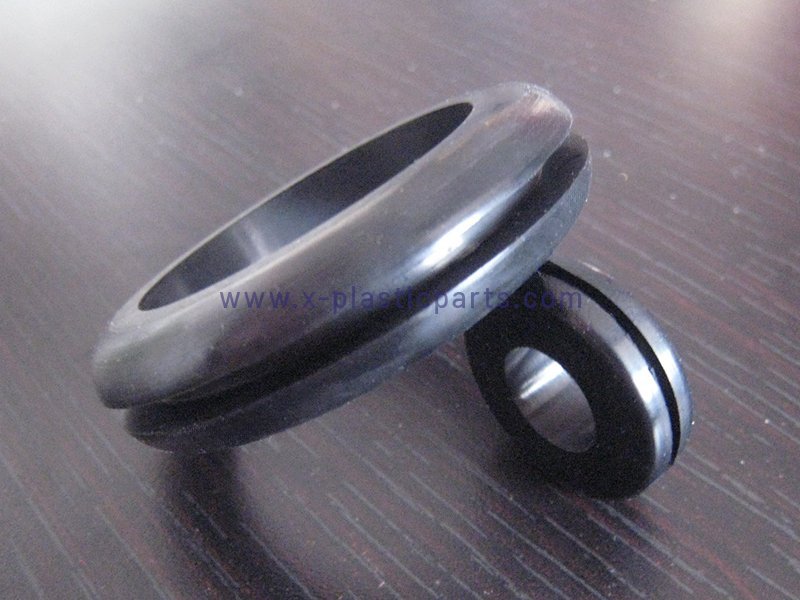

A rubber hole grommet is a ring-shaped fitting with a through-hole running the full length of its body, allowing wires, cables, or tubing to pass cleanly through a panel opening. Unlike a closed grommet that simply plugs a hole, the hole grommet is designed for pass-through applications — it seats firmly in the panel cutout and protects whatever runs through it from sharp metal edges, vibration, and moisture ingress.
Unlike standard grommets sold off-the-shelf, every hole grommet we make is built to your drawing or sample. We do not stock catalog sizes — inner bore, outer diameter, groove width, flange thickness, and shore hardness are all specified by you to match your panel thickness and cable bundle dimensions exactly.
FlexiParts specializes in on-demand custom rubber hole grommets, offering complete custom injection molding and compression molding solutions from mold design to mass production. Send us your 3D drawings or a sample part to get started.
Where Rubber Hole Grommets Are Used
Hole grommets are specified wherever a wire harness, cable, or fluid line must pass through a metal or plastic panel. Each application carries its own panel thickness, cutout size, and environmental requirements — which is exactly why custom manufacturing matters here.
- Automotive Wiring Harnesses — passing through firewall, door panels, and chassis openings; groove dimensions must match panel gauge precisely
- Electrical Enclosures & Control panels — protecting insulated wire at entry and exit points; often specified with a tighter bore tolerance for strain relief
- Industrial Machinery — routing hydraulic hoses or sensor cables through steel frames; NBR or FKM material typically required for fluid contact
- HVAC Equipment — sealing refrigerant or drainage tubing pass-throughs; EPDM for outdoor units, silicone for high-heat environments
- Marine & Outdoor Equipment — waterproof cable routing; groove geometry designed to seal against moisture ingress at the panel face
Tell us your application and we will engineer the grommet geometry to fit — not the other way around.
Customizable Specifications
When you send us your drawing or sample, we quote based on your exact requirements. Parameters we customize include:
- Inner Bore (ID): matched to your cable or tubing OD; tighter bore creates a self-sealing fit
- Outer Diaeter (OD) & Groove Width: matched to your panel cutout size and material thickness
- Flange Diameter & Thickness: prevents pull-through; sized for your clamping or visual requirements
- Hardness (Shore A): typical range 40–80 Shore A; softer for vibration damping, harder for structural retention
- Color: black standard; custom colors available for identification or brand requirements
- Surface Finish: smooth or textured inner bore; matte or glossy outer face
How To Work with Us
The key to great custom parts is collaboration. As a custom molding manufacturer, our engineers will stay connected with you throughout the process, and deliver products that meet your expectations.
- Send us your 2D/3D files or product concept, for an accurate quote, please send us materials, order quantity, and surface requirements.
- We review your design and send you a clear cost within 24 hours.
- Our tooling team builds the mold to your specifications, then send you T1 samples for confirmation.
- Once the sample is approved, we run full production under strict quality control
- Your finished parts are packaged securely and shipped to your location on time.
