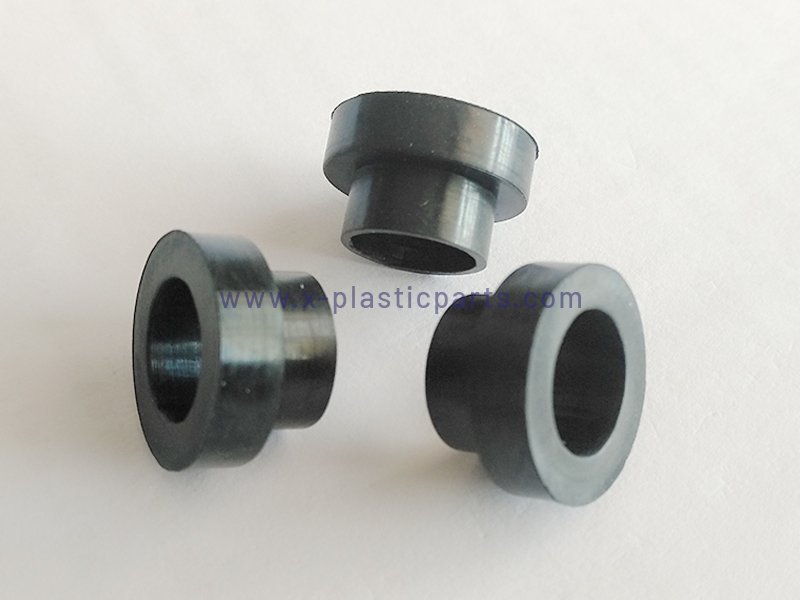

Tapered Rubber Grommets

Custom Tapered Rubber Grommets Manufacturer

Standard rubber grommets lock into a panel through a groove that grips both faces of the material. Tapered rubber grommets work differently. Their tapered body compresses through the mounting hole and expands on the opposite side, creating secure retention without a locking groove or rear access.

This design is ideal when the back of the panel cannot be reached because of enclosed housings, internal components, or assembly sequence restrictions.

Flexiparts manufacture custom tapered rubber grommets to your drawing, sample, or dimensional specifications. Every grommet is produced to match your panel hole, cable or hose diameter, installation method, and application requirements rather than adapted from a standard catalog size.

What We Need for a Custom Quote

Every tapered rubber grommet is manufactured specifically for your application. To prepare an accurate quotation, we typically require:

• Hole diameter
• Panel thickness
• Cable, hose, or tube outside diameter
• Preferred material (EPDM, NBR, Silicone, FKM, etc.) or operating environment
• Target quantity
• Any tolerance, compliance, or performance requirements

A technical drawing is the fastest way to define these requirements, but a sample or basic dimensions are usually enough for us to begin design review. If material selection is still undecided, simply tell us the operating conditions—such as temperature, UV exposure, oil or chemical contact—and we will recommend the appropriate compound.

Custom Dimensions We Manufacture

Unlike standard push-in grommets, tapered rubber grommets are designed around your specific mounting conditions. Typical custom dimensions include:

• Large End Diameter — sized to provide secure retention after installation.
• Small end Diameter — designed for smooth insertion through the mounting hole.
• Body Length — matched to panel thickness and required pull-out resistance.
• Bore Diameter — customized to fit your cable, hose, or tube outside diameter.
• Rubber Hardness (Shore A) — selected to balance installation force, retention, sealing, and service life.

If only partial dimensions are available, our engineering team will help complete the design before tooling begins.

Typical Applications for Custom Tapered Rubber Grommets

• Sealed Electrical Enclosures – One-side cable entry where rear access is restricted.
• Automotive & Appliance Manufacturing – Tool-free push-in installation for high-volume assembly.
• Industrial Machinery – Cable routing through custom panel holes and equipment housings.
• Sheet Metal Assemblies – Reliable retention despite normal hole-size tolerances.
• Custom OEM Products – Non-standard hole sizes, cable diameters, or installation conditions.
