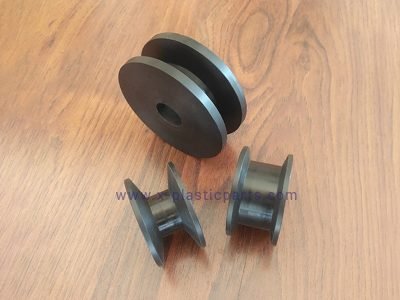

Plastic Flat Belt Pulley

Flat Belt Pulleys for Smooth Transmission

Flat belt pulleys feature a wide, smooth surface that ensures uniform power distribution, reduces slippage, and minimizes wear. Ideal for long-distance power transmission with low maintenance.

Flexiparts specializes in custom flat belt pulleys, tailored to your specific needs, including precise dimensions, material selection, surface finish, and load capacity. Whether you need custom bore sizes, wear-resistant materials, or exact tolerances, our advanced molding techniques ensure high precision and durability. Please send us your 3D drawings or samples.

Common Materials for Flat Belt Pulley

Custom Flat Belt Pulley Options

Flat belt pulleys are made to match your belt and drive layout, so we customize the parts that decide how the belt runs:

Face Width: 20–300 mm, matched to your belt width
Face Profile: flat, crowned or flanged. A crowned face is slightly convex and helps keep the belt centered, while flanges hold the belt in place where tracking is a concern.
Outer Diameter: 50–500 mm, depending on the drive ratio and application
Bore and Hub: 10–100 mm bore, with options for plain bore, keyway, set screw, metal insert or press-fit bearing
Surface Finish and Tolerance: Ra 1.6–3.2 μm for machined surfaces, with dimensional tolerance typically ±0.05–0.10 mm

Flat Belt Pulleys vs. Other Belt Pulleys

Flat belt pulleys suit light-to-medium loads, high speeds and long center distances, and they run quietly. Because they rely on belt tension for grip, they are less suited to high-torque drives. For stronger grip, consider V-belt pulleys. If the shafts must stay exactly synchronized, choose timing pulleys. To keep the belt tight or increase wrap, add an idler pulley. If one shaft needs several speeds, see stepped cone pulleys. Every type can be custom made to your specifications.

How To Work with Us

The key to great custom parts is collaboration. As a custom molding manufacturer, our engineers will stay connected with you throughout the process, and deliver products that meet your expectations.

Send us your 2D/3D files or product concept, for an accurate quote, please send us materials, order quantity, and surface requirements.
We review your design and send you a clear cost within 24 hours.
Our tooling team builds the mold to your specifications, then send you T1 samples for confirmation.
Once the sample is approved, we run full production under strict quality control
Your finished parts are packaged securely and shipped to your location on time.

Start Your Project!
