Rubber bushings can absorb shocks, dampen noise, and protect moving parts across industries like automotive, aerospace, and construction. In this comprehensive guide, we’ll explore what makes a rubber bushing essential, its types, benefits, materials, manufacturing processes, applications, and how to craft custom solutions tailored to your needs.

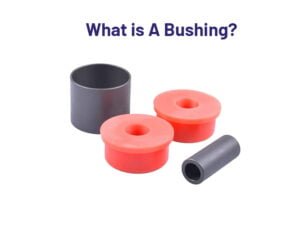

What is a Rubber Bushing?
A rubber bushing is a cylindrical or sleeve-like vibration isolator designed to sit between moving parts, reducing friction, absorbing shocks, and minimizing noise. Typically made from natural or synthetic rubber, it features a central hole to accommodate a shaft or bolt, providing a flexible connection that cushions mechanical stress. Often bonded to metal sleeves for added structural integrity, a rubber bushing prevents wear and tear, extending the lifespan of equipment.
Types of Rubber Bushings
Rubber bushings come in various forms, each engineered for specific applications and load conditions:
Conical Rubber Bushings
Shaped like cones, these bushings handle angular movements and lateral forces effectively. Often made from silicone rubber, they withstand high temperatures and are compatible with oil and grease. Commonly used in automotive and marine suspension systems.
Solid Rubber Bushings
Made from a single piece of rubber, these bushings provide excellent vibration isolation. Their simple design makes them suitable for automotive suspensions and industrial machinery.
These combine rubber’s flexibility with metal’s strength by bonding rubber to a metal shell or inner sleeve. This design offers increased load capacity and precise positioning, making them common in various mechanical applications.

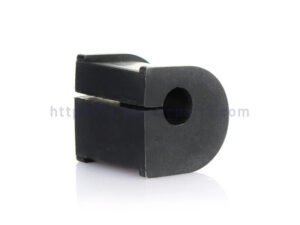

Split Rubber Bushings
Designed with a slit or split, they allow easy installation without disassembling surrounding components. They are often used in automotive suspension and engine mounts.

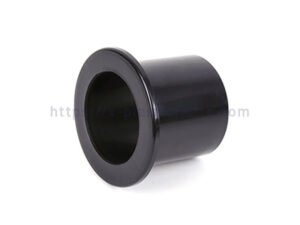

Flanged Rubber Bushings
These have a flange extending laterally from one end, providing high axial load support and controlling horizontal movement. Typically made from SBR or EPDM rubber, they are used in engines, vehicles, and construction equipment.

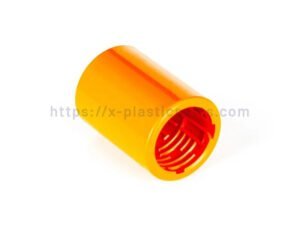

Rubber Sleeve Bushings
Used as insulating linings and for abrasion protection in equipment parts, these come in forms like suspension sleeves, bearing sleeves, and shaft sleeves.
Control Arm Rubber Bushings
These prevent metal-to-metal contact in vehicle control arms, protecting the arm from resting on the frame.
Heavy-Duty Bushings
Featuring extra rubber for durability, these bushings resist wear and tear but may produce more noise. They are used in demanding applications requiring robust protection.
Leaf Spring Bushings
Encased in steel or rubber, these bushings cushion vehicle springs and withstand high torsional and radial loads. They are primarily used at the front eye of automotive springs.
Shock Bushings
Designed to buffer and isolate vibrations, commonly used in automobiles and skateboards.
Eccentric Bushings
Made with two metal sleeves offset radially, allowing larger rubber sections to absorb loads and provide vibration reduction. Used in cab mountings and engine mounts for heavy machinery.
Threaded Rubber Bushings
Featuring internal threads, these bushings can be screwed onto shafts or bolts. They are used for fastening and vibration isolation in diverse equipment.
Spherical Bushings
Compact, heavy-duty bearings that allow multi-axis movement and high load capacity without lubrication, used in off-road vehicles and construction equipment.
Custom Rubber Bushings
Engineered to meet specific design and performance needs, csutom bushings offer tailored shapes, sizes, and materials. Ideal for non-standard or demanding applications where off-the-shelf options are insufficient.
Benefits of Rubber Bushings
Why choose a rubber bushing? The advantages are numerous and impactful:
- Vibration Isolation: Rubber bushings reduce vibrations by 70–90%, stabilizing equipment and improving operator comfort in vehicles or machinery.
- Noise Reduction: By dampening mechanical and road noise, they create quieter environments, enhancing user experience in cars or industrial settings.
- Durability: High tensile strength and resilience allow rubber bushings to withstand repeated stress, extending component lifespan
- Cost-Effectiveness: Compared to polyurethane or metal alternatives, rubber bushings are more affordable, making them ideal for general-purpose applications.
- Flexibility: They allow controlled movement, improving system performance, such as smoother steering in vehicles or precise alignment in machinery.
Applications of Rubber Bushings
The versatility of rubber bushings makes them indispensable across a wide range of industries:
Automotive: Rubber bushings are critical in suspension systems, engine mounts, control arms, and sway bars, enhancing ride comfort and reducing wear from road vibrations.
Industrial Machinery: They minimize noise and friction in heavy equipment like presses or conveyors, extending operational life and improving efficiency.
Marine: In propeller shafts or rudders, rubber bushings absorb vibrations, ensuring reliability in corrosive, high-stress marine environments.
Electronics: Used to insulate components and prevent electrical shorts, rubber bushings also reduce operational noise in devices like computers or appliances.
Construction: They isolate vibrations in building foundations or bridge supports, enhancing structural stability.
Aerospace: Rubber bushings support landing gear and engine mounts, absorbing impacts and ensuring safety under extreme conditions.

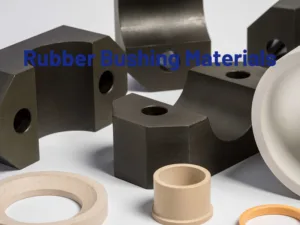

Materials Used in Rubber Bushings
The performance of a rubber bushing depends heavily on the material used, with options tailored to specific environmental and performance needs:
- Natural Rubber (NR): Known for high resilience and flexibility, it’s ideal for dynamic applications like automotive suspensions. However, it’s limited to temperatures below 155°F and offers poor resistance to oils and chemicals.
- Neoprene(CR): Resists heat, oil, and weathering, making it suitable for outdoor or industrial applications.
- Nitrile (NBR): Offers excellent oil and chemical resistance, perfect for automotive engine mounts exposed to fuels.
- Silicone(MVQ): With high-temperature tolerance and low compression set, it’s used in conical rubber bushings for extreme environments.
- Polyurethane (PU): While not rubber, it’s a durable alternative with high abrasion resistance, often used in heavy-duty applications requiring superior wear resistance.
- Ethylene Propylene Diene Monomer(EPDM): Excels in weather and ozone resistance, ideal for outdoor construction or marine applications.
How Rubber Bushings Are Manufactured?
Creating a high-quality rubber bushing involves a precise manufacturing process, ensuring durability and performance:
Material Selection: Manufacturers choose rubber based on hardness (measured in durometer), resilience, and environmental resistance. For example, EPDM is selected for outdoor durability, while silicone suits high-temperature needs.
Molding: Techniques like compression, injection, or transfer molding shape the rubber into cylindrical or conical forms, depending on the design requirements.
Bonding: For rubber-to-metal bushings, metal sleeves are treated with adhesives, then bonded to the rubber during curing to ensure a strong, permanent connection.
Vulcanization: The rubber is heated and compressed with sulfur or other agents to enhance elasticity, strength, and resistance to deformation.
Finishing: Post-molding, bushings are trimmed, inspected, and deburred to meet strict quality standards, ensuring no defects compromise performance.
Custom Rubber Bushing Solutions with Flexiparts
Crafting a custom rubber bushing demands precision to meet your project’s unique needs. Designs must account for specific loads and environmental factors, using advanced techniques like injection molding or other processes for accuracy. Rigorous testing ensures durability.
Partnering with a skilled manufacturer transforms your vision into a high-performance rubber bushing. FlexiParts, an experienced supplier of custom rubber bushings, offers tailored solutions for any application. Contact our experts today to start your project and create the perfect rubber bushing for your needs.
