What is a pinion gear? A pinion gear is a critical component in many mechanical systems, yet its function and importance are often overlooked. This article explores what a pinion gear is, how it differs from regular gears, and its various types, applications, and maintenance needs. Whether you’re working on industrial machinery, automotive systems, or precision devices, understanding the role of pinion gears is essential for optimal performance and durability. Dive into the details of gear design, failure causes, and the benefits of choosing the right gear supplier to ensure your systems run smoothly and efficiently.
What is a Pinion Gear?
A pinion gear is a small cylindrical gear that meshes with a larger gear, commonly referred to as the rack or the crown gear. The pinion gear specifically refers to the smaller gear in a meshing pair. In this context, when discussing “what is gear and pinion,” the term describes a mechanism in which the pinion gear drives the larger gear, converting rotational motion into linear motion or adjusting speed and torque within the system.
The pinion’s size and teeth are precisely engineered to mesh with other gears, ensuring that they rotate together smoothly and without excessive friction or wear. Pinion gears are typically employed in applications that require a reduction in speed and an increase in torque, as they are often used to drive larger, slower-turning gears in systems like automotive transmissions, industrial machines, or even steering mechanisms in vehicles.
Pinion Gear vs. Regular Gears: What’s the Difference?
When discussing pinion gears versus regular gears, it’s important to understand the nuanced distinctions in their design, size, and functionality.
Size and Teeth Design
The most noticeable difference between a pinion gear and a regular gear lies in their size and teeth design. A pinion gear is typically smaller in diameter, featuring a set of teeth designed to mesh with larger gears. These teeth are often straight or helical, depending on the type of gear system they are a part of. In comparison, regular gears, such as spur gears or bevel gears, can vary widely in size and teeth design, depending on their intended function.
Common Uses and Specific Purposes
Pinion gears are predominantly used in applications where a gear reduction or torque increase is required. Common examples include steering mechanisms in vehicles, where a pinion gear works with a rack to enable the vehicle’s wheels to turn. Similarly, in the automotive industry, differential systems often utilize pinion gears to transfer power from the driveshaft to the axle, facilitating the movement of the vehicle.
In contrast, regular gears are more versatile and can be employed in a wide range of systems. Spur gears are used in everything from clocks to industrial machinery, where they serve to transfer motion between shafts that are parallel. Bevel gears, on the other hand, are often employed in situations where two shafts must rotate at an angle to each other, such as in transmission systems or in differential gears.
Common Types of Gears
Depending on the application, gears come in various forms, each designed to meet custom gear specific operational requirements. Among these, spur gears, helical gears, bevel gears, and worm gears are the most prevalent.
Spur Gears: Simple Gears with Straight Teeth
Spur gears are the most basic and widely used type of gear, featuring straight teeth that are parallel to the gear axis. These gears are known for their high efficiency and ease of manufacturing. Spur gears mesh together without any angular displacement, making them ideal for applications where precise alignment and uniform motion are essential.
Spur gears are frequently used as pinion gears due to their simplicity and effectiveness in low-speed, high-torque applications. They are commonly found in:
- Automotive Transmissions: To transfer power from the engine to the drivetrain.
- Industrial Machinery: Where robust and straightforward motion transmission is needed.
- Robotic Actuators: Requiring consistent torque and accurate positioning.
Helical Gears: Gears with Angled Teeth for Smoother Operation
Helical gears have teeth cut at an angle to the axis, creating a helix shape that offers smoother and quieter operation compared to spur gears. As the teeth engage gradually, they produce less vibration and noise, making them ideal for high-speed applications.
Helical gears are favored as pinion gears when smooth motion and reduced noise are crucial, particularly in:
- Automotive Differentials: Enhancing smooth power distribution to the wheels.
- Heavy Machinery: Where high-speed rotation requires minimal vibration.
- Precision Equipment: Including pumps and compressors, where consistent motion is necessary.

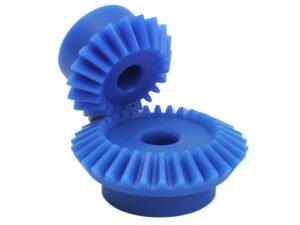

Bevel Gears: Conical Gears for Perpendicular Motion Transfer
Bevel gears are characterized by their conical shape, allowing them to transfer motion between perpendicular shafts. They are particularly useful when the power needs to change direction, such as in differentials and transmission systems.
Why Bevel Gears Are Used as Pinion Gears
In applications where angular power transmission is required, bevel gears are often chosen as pinion gears. Examples include:
- Automotive Differentials: The ring and pinion gears work together to transfer motion from the driveshaft to the axles.
- Power Tools: Enabling angular motion transmission for efficient operation.
- Industrial Gearboxes: Where direction change is crucial for machine functionality.
Worm Gears: Gear and Worm for Right-Angle Motion Transfer
Worm gears consist of a worm (a screw-like shaft) that meshes with a worm wheel. This configuration achieves a high reduction ratio and can significantly amplify torque while reducing speed. The worm gear’s self-locking characteristic also prevents back driving, adding safety to systems where reverse motion must be avoided.
While worm gears are valuable for high torque and speed reduction, they are not typically used as pinion gears because of:
- High Friction Losses: Resulting in reduced efficiency.
- Limited Back-Driving Capability: Making them unsuitable for applications requiring bidirectional motion.
- Heat Generation: Due to sliding contact between the worm and worm wheel.
Comparision of Common Gear Types
| Attribute | Spur Gears | Helical Gears | Bevel Gears | Worm Gears |
|---|---|---|---|---|
| Tooth Configuration | Straight teeth, parallel to axis | Angled teeth forming a helix | Conical shape, intersecting axes | Screw-like worm with worm wheel |
| Operational Characteristics | High efficiency, noisy at high speed | Smooth, quiet operation, axial thrust | Transmits motion between perpendicular shafts | High torque reduction, self-locking |
| Common Uses as Pinion Gear | Automotive transmissions, industrial machinery | Automotive differentials, heavy machinery | Automotive differentials, power tools | Rarely used as pinion gears, heavy-duty machinery |
| Advantages | Simple design, easy to manufacture | Reduced noise, high load capacity | Effective directional change | High reduction ratio, compact size |
| Disadvantages | Noisy at high speeds | Requires axial bearing support | Complex manufacturing process | High friction, lower efficiency |
Materials Used in Pinion Gears
Below are the most commonly used materials for manufacturing pinion gears.
Steel: Strength and Durability
Steel is the most commonly used material for pinion gears, owing to its exceptional strength, durability, and wear resistance. It is particularly favored in heavy-duty applications where high torque transmission and impact resistance are crucial.
Steel pinion gears are usually used in automotive transmissions, industrial gearboxes, and robotic actuators. They are ideal for high stress environments and can be heat-treated to increase hardness and durability.
Brass: Lightweight and Noise Reduction
Brass is significantly ligher than steel, and it is a preferred material when noise reduction and corrosion resistance are critical.
Aluminum: Lightweight and Malleable
Aluminum as a metal has excellent machinability and lightweight. It is naturally forms a protective oxide layer.
Plastic: Cost-Effective and Lightweight
Plastic pinion gears are commonly used in low-load and low-speed applications where cost efficiency and weight reduction are essential. They are typically made from nylon, acetal, or polycarbonate, providing self-lubricating properties and corrosion resistance.
Causes of Gear Failure and Breakage
Understanding why a pinion gear breaks can help you avoid costly downtime. Here are the most common reasons:
1. Overloading
When the gear handles more torque than it’s designed for, the teeth can chip or snap. This usually happens when the gear ratio isn’t right or torque isn’t well controlled.
2. Poor Lubrication
Not enough or the wrong type of lubricant causes too much friction and heat. Over time, this wears down the gear or even makes it seize. Regular oil checks and using the right grease go a long way.
3. Misalignment
If gears don’t line up properly, the pressure isn’t evenly spread, which wears them out fast. This can come from bad installation or heat expansion. Regular checks and proper setup help keep things running smoothly.
4. Material Fatigue
Even tough gears can crack over time if they’re constantly stressed. Using stronger materials and surface treatments like nitriding helps, but routine inspections are key to catching wear early.
Maintenance and Care for Pinion Gears
Proper maintenance is key to keeping pinion gears running smoothly and avoiding unexpected failures. This includes routine inspections to check for wear, cracks, or misalignment, along with monitoring lubricant quality and contamination. Using the right type and amount of lubrication reduces friction and heat buildup—automated systems can help ensure consistent application. Keeping gears clean is also important, as dust and debris can cause abrasion over time. Regular cleaning with suitable solvents, along with protective enclosures, helps extend gear life. Most importantly, always ensure correct alignment during installation and perform periodic checks to keep gears running in sync and under minimal stress.
Choose Flexiparts as Your Custom Gear Supplier
Finding the right supplier for custom pinion gears is key to ensuring quality, durability, and precision. Flexiparts combines advanced CNC machining, injection molding, and 3D printing technologies to deliver gears that meet a wide range of industrial requirements. Our injection molding process achieving tolerances as tight as ±0.01 mm and reducing production cycles by up to 30% compared to industry averages. From design consultation to after-sales support, our team offers professional guidance on gear selection, production methods, and maintenance. Whether you need prototypes or large-volume production, Flexiparts provides flexible solutions tailored to your specific needs.
