Different types of suction cups play a vital role in industrial automation and material handling, providing a reliable and efficient way to grip and move objects of various shapes, sizes, and surface textures. Whether in packaging, automotive assembly, or food processing, industrial suction cups are pivotal in vacuum handling systems. This ultimate guide explores the mechanics, suction cup shapes, and selection criteria for types of vacuum cups.
What is a Suction Cup and How Suction Cups Work?
A suction cup is a highly effective component in vacuum grippers, designed to securely hold workpieces by creating a vacuum seal. At its core, vacuum suction cups work by leveraging a vacuum generator, such as a Venturi system, to evacuate air from within the cup, reducing internal pressure. This creates a pressure differential, allowing atmospheric pressure to press the suction pads firmly against the workpiece surface, ensuring a robust grip.
Suction cups are often made from materials like rubber or silicone through injection molding manufacturer, allowing for precise shapes and consistent quality required in automated handling systems.
In simple words, the vacuum suction cups function is:
Vacuum Creation: Air is rapidly removed to form a pressure differential, enabling the cup to adhere to the surface.
Effective Seal: Keep the suction cups adhere to the object surface.
Holding Force: The gripping strength is calculated using the formula ( F = \Delta p \times A ), where ( \Delta p ) is the pressure difference and ( A ) is the suction cup’s effective area.
Types of Suction Cups
Choosing the right suction cup shape is essential for efficient and reliable handling in automated pick-and-place systems. Different shapes suit various workpiece surfaces and handling requirements. Below are common suction cup types along with their key advantages and typical applications:

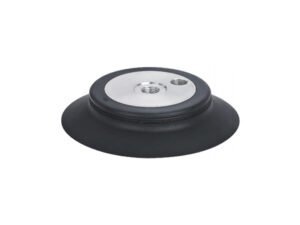

Flat Suction Cups
Flat suction cups feature a smooth, flat sealing lip designed to create a strong vacuum seal on flat, hard surfaces.
Advantages:
- High gripping force and precise positioning
- Ideal for high-speed automated handling
- Easy to clean and replace
Applications:
Widely used in electronics, automotive, and packaging industries, flat suction cups are perfect for handling flat, rigid workpieces such as glass panels, metal sheets, and plastic plates.

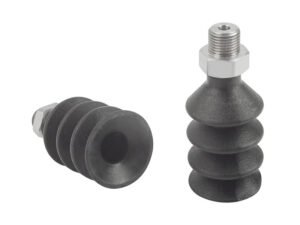

Bellows Suction Cups
Bellows suction cups have one or more pleated folds that allow elastic deformation during gripping.
Advantages:
- Compensate for height differences and uneven surfaces
- Provide gentle handling for sensitive or deformable workpieces
- Suitable for irregular, curved, or uneven surfaces
Applications:
Commonly used in food processing, glass handling, and plastic product industries, bellows suction cups excel at handling packaging bags, plastic bottles, and curved sheet materials in automated pick-and-place systems.

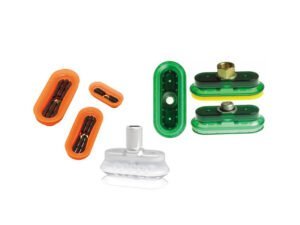

Oval Suction Cups
Oval suction cups have an elongated sealing lip, providing a larger contact area in one dimension.
Advantages:
- Increased contact area for improved grip stability
- Ideal for narrow, elongated, or space-constrained workpieces
- Efficient handling in tight spaces
Applications:
Extensively used in woodworking, metal processing, and automotive sectors, oval suction cups are well-suited for handling strip-shaped materials, profiles, door frames, and window components in automated systems.

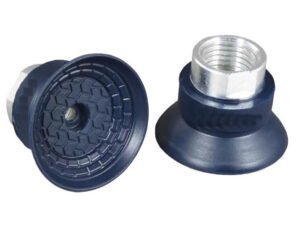

Bell-Shaped Suction Cups
Bell-shaped suction cups are characterized by a single sealing lip and a smooth, rounded profile. The internal friction pattern of bell-shaped suction cups enhances grip stability, allowing for secure handling of workpieces with complex contours. The flexible bell shape permits significant deflection, ensuring excellent adaptability to uneven, curved, or angular surfaces without deforming the workpiece.
Advantages:
- Excellent adaptability to convex, concave, and angular surfaces
- High wear resistance and long service life
- Secure grip on complex or sensitive workpieces
- Consistent performance in demanding industrial environments
Applications:
- Objects with irregular or sensitive surfaces
- Sheet metal processing
Deep Suction Cups
Deep Suction Cups offer a middle ground between flat and bellows cups. They are designed to grip highly curved or domed surfaces quickly, balancing adaptability with speed. These cups are often used when handling rounded or irregular shapes that require fast cycle times.
Specialty Suction Cups
Specialty suction pads are custom-crafted for niche applications, shapes include stepped cups, multi-stage cups, and cleated or sponge cups designed for specific surface types or applications, such as porous materials or objects with holes.
Considerations in Suction Cup Selection
Choosing the right types of suction cups is a critical decision that hinges on aligning suction pads with workpiece properties and application requirements. A well-selected vacuum suction cup enhances performance, while a poor choice risks vacuum leaks, dropped workpieces, or inefficiencies in vacuum handling systems. Below, we outline the key considerations to guide your selection of industrial suction cups.
Material Choice
The material of types of vacuum cups determines durability, environmental compatibility, and surface suitability.
- Nitrile Rubber (NBR): Durable and oil-resistant, ideal for handling metal sheets or wooden panels in manufacturing.
- Silicone: FDA-compliant and high-temperature resistant, perfect for food packaging and glass handling.
- Polyurethane (PU): Wear-resistant, suited for rough surfaces like stone or textured wood.
- Fluoro Rubber (Viton): Chemical- and heat-resistant, designed for harsh industrial environments.
Surface Texture and Shape Compatibility
The workpiece’s surface dictates the suction cup shape. Smooth, flat surfaces pair well with flat suction pads, while rough, curved, or uneven surfaces require bellows or bell-shaped cups to maintain a secure seal.
Load Capacity
Ensuring the vacuum suction cups can handle the workpiece’s weight is critical. Calculate the holding force using ( F = m \times (g + a) \times S ), where ( m ) is the workpiece mass, ( g ) is gravitational acceleration (9.81 m/s²), ( a ) is system acceleration, and ( S ) is the safety factor (1.5 for smooth surfaces, up to 4.0 for vertical or porous surfaces).
Application Speed
High-speed pick-and-place systems demand rigid flat types of suction cups for quick cycles, while slower, delicate tasks benefit from flexible bellows cups to prevent damage.
Environmental Conditions
Select cup materials compatible with the workpiece and environment. For example, silicone cups resist high temperatures and are food-safe, nitrile rubber offers oil resistance, and polyurethane provides durability and wear resistance.
Conclusion
The world of types of suction cups product offers a remarkable array of solutions, each tailored to meet the unique demands of industrial automation. Flexiparts as a experienced manufacturer, we provide professional manufacturing solutions and produce a wide range of different types of suction cups to meet your unique needs. Contact us and get start your suction cups project.
