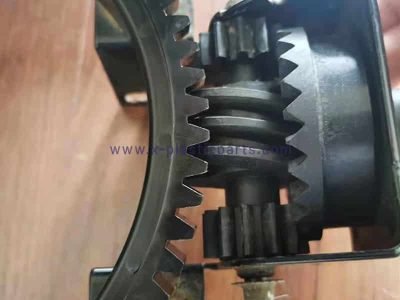

Custom Plastic Worm Gears for Precision Motion Control
Flexiparts manufactures custom plastic worm gears — no standard catalog parts. Every gear is molded to your reduction ratio, lead angle, material, and shaft interface.
Plastic worm gears transmit motion between perpendicular shafts with high reduction. Their helical teeth provide smooth, quiet operation, precise torque, and self-locking, ideal for compact machinery, actuators, and precision devices.
What You Can Customize
- Reduction Ratio — commonly 10:1 to 100:1 depending on lead angle and number of starts
- Lead angle / Thread Starts — single-start for high ratio and slow motion, multi-start for faster motion at lower ratio

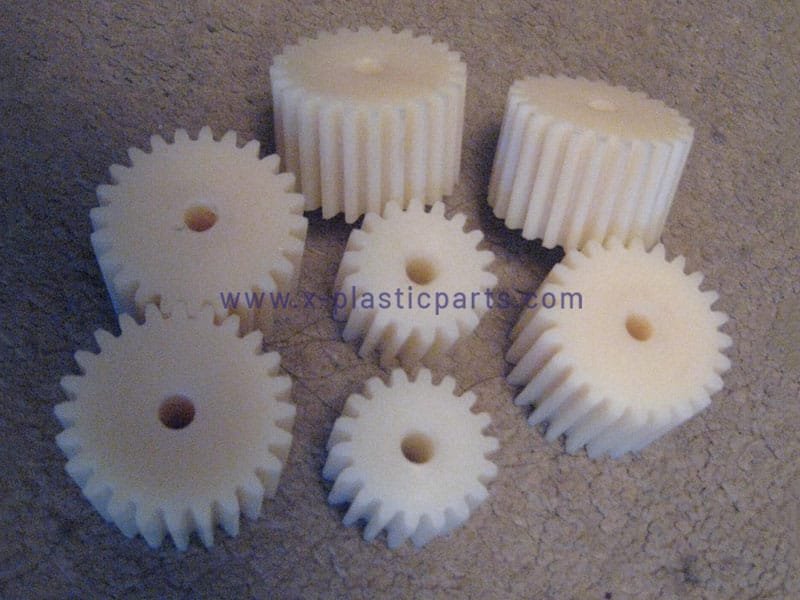

- Material — POM (precision, self-lubricating), Nylon (wear/impact resistance), PEEK (high heat, up to 250°C)
- Bore & Shaft Interface — keyway, D-bore, or press-fit to match your shaft
- Module / Tooth Profile — matched to your mating worm wheel drawing
Reference ranges only — every gear is molded to your drawing.
Why Choose a Worm Gear？
Worm gears are the right choice when you need high reduction in a compact space and self-locking to prevent back-driving — common in actuators, valve controls, and adjustment mechanisms. Trade-off: lower efficiency (50–80%) than spur or helical gears due to sliding friction, so they’re not the right fit for continuous high-speed drive systems.

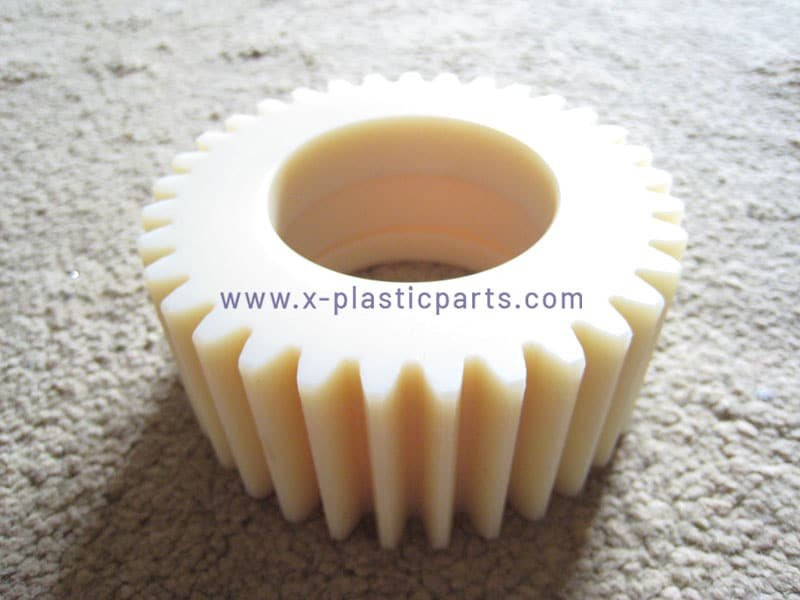

If your application needs high efficiency at speed, see our Helical Gears or Spur Gears product instead.
Case Study: Custom Plastic Worm Gear for an Automated Window Blind System
Customer Challenge
A smart home equipment manufacturer required a lightweight worm gear that could quietly drive motorized window blinds while holding the blind position after power was removed. Existing off-the-shelf gears generated excessive noise and required additional locking components.
Custom Solution
A custom worm gear set was produced using an engineering plastic worm wheel matched with a precision-machined steel worm. The gear ratio, tooth profile, and hub dimensions were optimized for the customer’s motor and housing design.
Results
- Quiet operation suitable for residential environments.
- Self-locking function kept blinds in position without consuming power.
- Lower system weight compared with an all-metal gear set.
- Simplified assembly by eliminating separate locking mechanisms.
How To Work with Us
The key to great custom parts is collaboration. As a custom molding manufacturer, our engineers will stay connected with you throughout the process, and deliver products that meet your expectations.
- Send us your 2D/3D files or product concept, for an accurate quote, please send us materials, order quantity, and surface requirements.
- We review your design and send you a clear cost within 24 hours.
- Our tooling team builds the mold to your specifications, then send you T1 samples for confirmation.
- Once the sample is approved, we run full production under strict quality control
- Your finished parts are packaged securely and shipped to your location on time.
Related Products

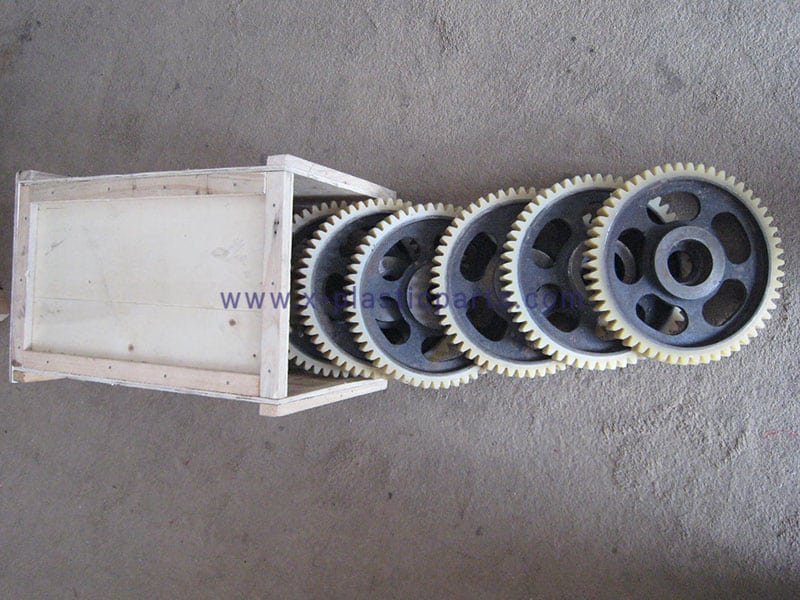

- More Plastic Gear
